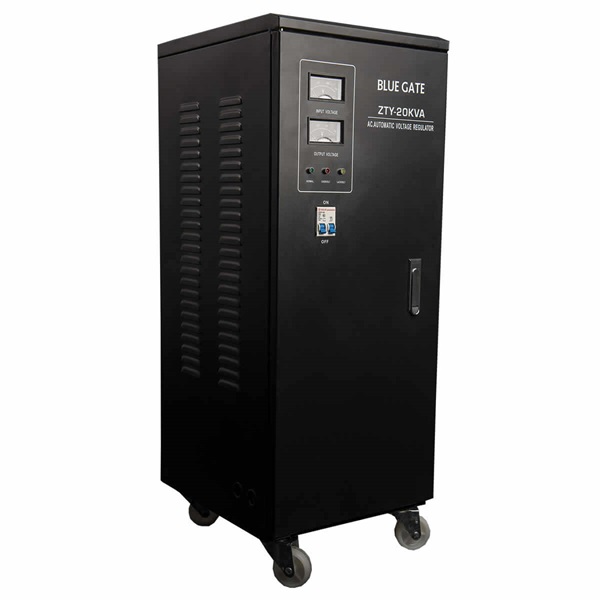

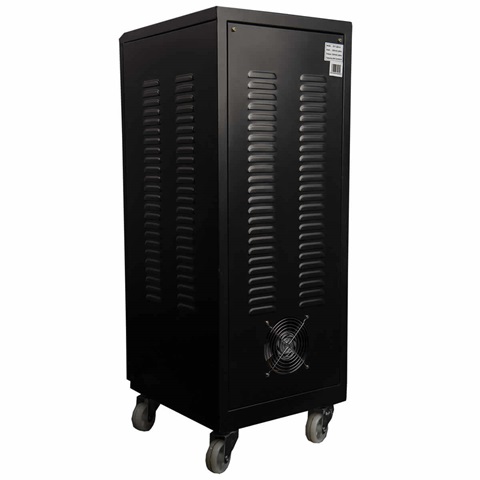

BLUE GATE 20kVA STABILIZER (SERVO-AVR SERIES - 20KVA)
PRICE: N580,000
Are you interested in this product?
Contact Sales:
08133686022, 08097039349
Email:
Description
This AVR-series has adopted the
The servo-AVR series high accuracy, fully automatic AC stabilized power supply is a key series of our products. It consists of auto-transformer, servo motor, automatic control circuit and so on. When utility is not stable or the load fluctuates, the automatic control circuit modifies the control output according to the output voltage change of power supply, which is used to drive the servo motor, and then the servo motor adjusts the carbon brush of auto-transformer to maintain the output voltage at its rating and remain stable.
APPLICATION
Computers, test equipment, lighting systems, security systems, X-ray systems, communication systems, medical equipment, duplicators, audio equipment, industrial automation equipment, colour film development equipment, digital control machine tools, calibration equipment, TV sets, office appliances.
Specifications
| MODEL | BGE10AS | BGE15AS | BGE20AS | BGE10AS33 | BGE20AS33 | BGE30AS33 |
| VA Rating | 10KVA | 15KVA | 20KVA | 10KVA | 20KVA | 30KVA |
| INPUT | ||||||
| Phase | Single phase + N+ GND [1:1] | Three phase + N + GND [3:3] | ||||
| Voltage Range | 100VAC – 260VAC | Line Voltage 173VAC -433VAC | ||||
| OUTPUT | ||||||
| Voltage | 220V | 380V | ||||
| Voltage precision | ≤±3% | |||||
| Frequency | 50/60Hz | |||||
| Over-voltage protection | Output phase voltage 250V±5V | |||||
| Low-voltage protection | Output phase voltage 183V±5V | |||||
| Efficiency | ≥96% | |||||
| SYSTEM | ||||||
| Display model | LED Direction light, Finger Voltage Diagram | |||||
| Input/output device | optional plug; Socket/Terminal | Terminal | ||||
| Waveform Distortion | No affixation Waveform distortion | |||||
| Response Time | ±10% varies <1s | |||||
| Insulation Resistance | ≥2MΩ | |||||
| Anti-electric intension | Low frequency sine voltage 1500V take 1minute No Rout and camber phenomena | |||||
| Ambient Temperature | 0⁰C – 40⁰C | |||||
| Relative Humidity | ≤95% | |||||
| Working | Continue | |||||
| OTHERS | ||||||
| Dimension(D*W*H)mm | 485x220x430 | 370x330x612 | 350x330x702 | 380x330x752 | 400x530x732 | |
| Net weight(kg) | 31 | 53 | 59 | 37 | 58 | 95 |
| Measure (D*W*H)mm | 555x280x495 | 500x430x690 | 435x460x790 | 420x555x840 | 500x635x830 | |
| Gross weight(kg) | 32 | 56 | 61.3 | 40 | 61.6 | 105 |
