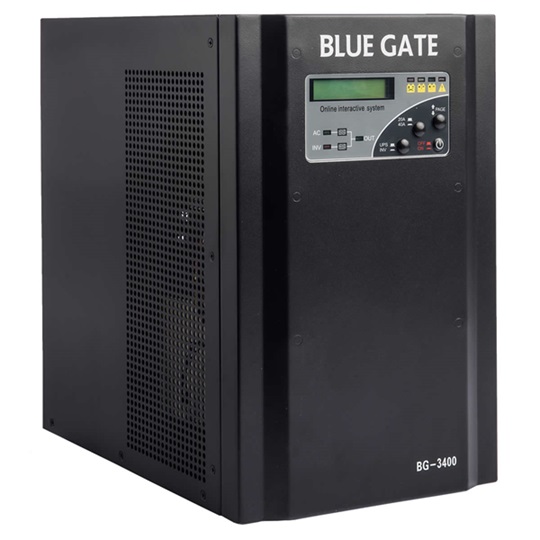

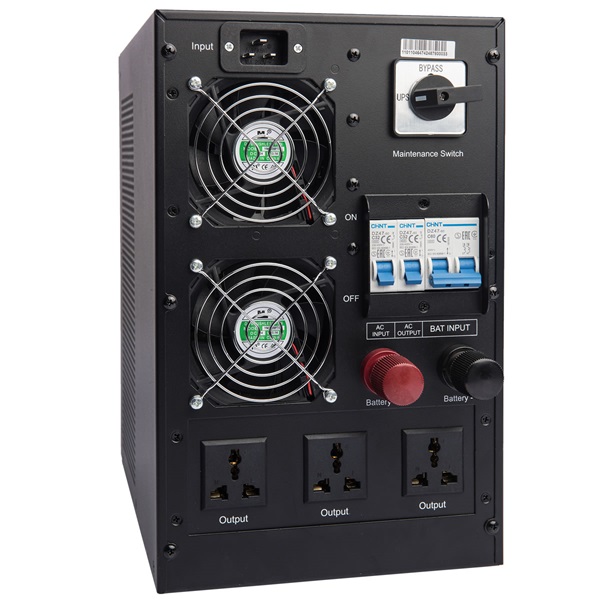

BLUE GATE 3.4kVA 24v INVERTER (BG3.4KVA)
PRICE: N385,000
Are you interested in this product?
Contact Sales:
08133686022, 08097039349
Email:
Description
Let more robust performance of the high-tech BG3400 24VDC
Let more robust performance of the high-tech BG3400 24VDC Pure Sine Wave inverter designed to international standard serve your energy power quest for most appliances, including either refrigerators or freezers; DEPENDING on your priorities. BG3400 has significant improvements on battery charging, AC transfer, etc. The device provides more smart options for users to optimize its performance. See load chart for guide..
BLUE GATE Inverters are built with advanced technologies to meet users’ need for alternative power. Investing in BLUE GATE Inverters is a sure way of getting the right value for your money.
Features
| Features | Benefits to Users |
| Pure Sine Wave Technology | Ensures quality power delivery to keep your equipment safe |
| Advanced Auto Sense Intelligent Control | Offers boost for high performance |
| Extended backup | Gives users flexibility to work and fun times |
| 6ms Typical Transfer Time Between Utility & Battery | Connected loads are not restarted during changeover times |
| Protective Edge | • 100% Protection for all Appliances (Rugged Technology)
• Overload with auto reset function. • Battery deep discharge protection. • Overload and short circuit protection. • Over temperature protection device. |
| Eco-friendly | • Noiseless in performance
• Pollution free |
| Advanced battery management | • Enhances battery life up to 70%
• Ensures faster battery charging |
| Wide input voltage range | • Ensures High Efficiency |
| Warranty | • warranted for quality reliability for one year and above
• Swift after sales service and support |
| SPECIFICATIONS OF BLUE GATE BG3400 INVERTER | ||
| MODEL | BG3400 | |
| Output Power | 2400W | |
| INPUT | ||
| Voltage rating | 220VAC | |
| Frequency rating | 50Hz | |
| Phase | Single phase | |
| Voltage range | Inverter mode: 120Vac – 300Vac/ UPS mode: 145Vac -285Vac | |
| Frequency range | 38Hz – 70Hz | |
| OUTPUT | ||
| Voltage | Utility mode | Inverter mode: 160 – 260V/UPS mode: 190-260V |
| Battery mode | 220VAC ± 10% | |
| Frequency | Utility mode | same as utility |
| Battery mode | 50Hz ± 1Hz | |
| Waveform | Utility mode | Tracking utility |
| Battery mode | sine wave | |
| Power Factor | 0.8 | |
| Protection | Overload/short circuit/overheat | |
| Noise | ≤55dB(1m) | |
| Transfer time | 6ms | |
| BATTERY | ||
| Battery voltage | 24Vdc | |
| Charge voltage | 27.6V ± 0.6V | |
| Charge current | 20A/40A (optional) | |
| External Interface | RED with Cabinet (Battery Anode); BLACK (Battery Cathode cable) | |
| ENVIRONMENT | ||
| Operating Temperature | 0⁰C – 40⁰C | |
| Storage Temperature | -25⁰C – 55⁰C | |
| Relative Humidity | 20% – 95% (non condensing) | |
| OTHERS | ||
| Machine Size (LxWxH(mm)) | 390.5 * 220 * 358 | |
| Packing Size (LxWxH(mm)) | 435 *306 * 448 | |
| Net Weight (KG) | 28 | |
| Gross Weight (KG) | 29 | |
